Portable MLSS and Sludge Blanket Level Meter

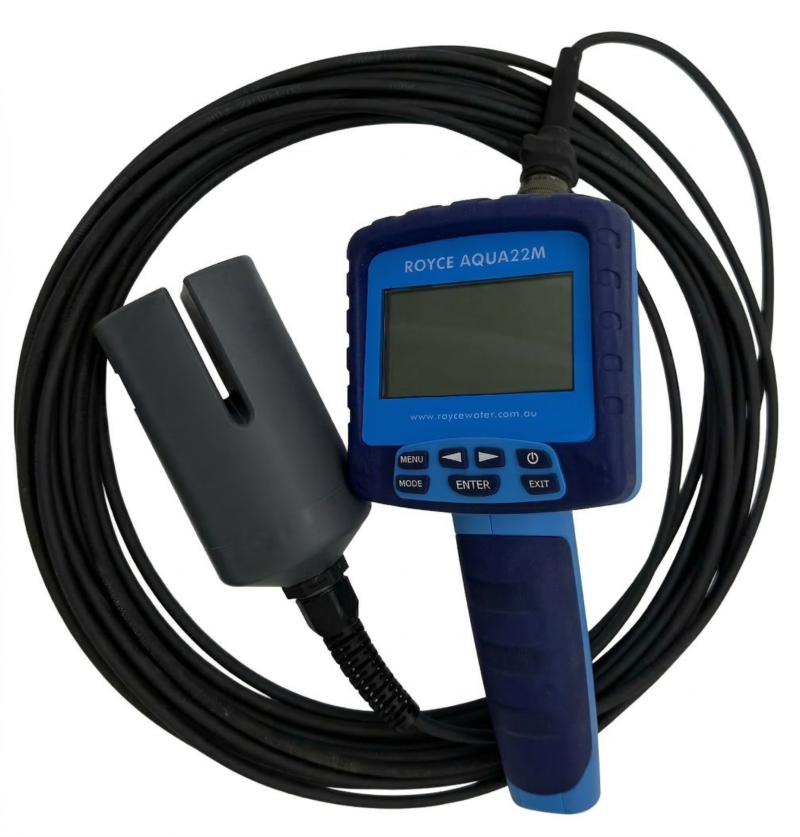

Royce Water Technologies has designed and manufactured the Aqua 22M portable hand-held MLSS and Sludge Blanket Level Meter.
MLSS & Sludge Blanket Level Measurement
- Range – 0 to 20,000 mg/L
- Depth – 0 to10 metres
- Cable length 10 metres
- A hydrostatic level sensor is used to provide easy depth measurement of the interface layer.
- Smart serialised sensors holds calibration dataĀ internally. This means that sensor can beĀ interchanged between handheld meters without the requirement to be calibrated.
- Specifications same as Aqua22
Dissolved Oxygen Measurement
- Uses standard Royce G95A online DO sensor
- Proven galvanic technology
- Accurate at zero DO
- Supplied with three years consumables
- Repeatability is +- 1% at constant temperature
- Response time <30 seconds
- Cable length 5 metres
pH Measurement
- Uses standard Royce S400 online pH sensor
- Sealed double junction reference
- Flat bulb design prevents glass breakage
- Range is 0 -14pH
- Supplied with 4pH and 7pH buffer solution
- Cable length 5 metres
ORP Measurement
- Uses standard Royce S400 online ORP sensor
- Guarded bulb design prevents glass breakage
- Range is -1000mV to +1000mV
- Supplied with 239mV buffer solution
- Cable length 5 metres
Level Measurement
- Depth – 0 to10 metres
- Cable length 10 metres
- A hydrostatic level sensor is used to provide easy depth measurement of tanks, ponds etc.
